產品詳情 Product details

1.型號含義

2.產品標準

GB/T 10228-2008 GB1094.11-2007

額定高壓Rated HV:20(22、24)kV
額定低壓 Rated LV: 0.4kV
分接范圍Tap connection range:
無勵磁調壓 Non-exciting regulation(主5%,±2×2.5%)

有載調壓 On-load regulation(士4×2.5%)
聯結組別 Vector group:Dyn11or Y yn0

絕緣水平Insulation level :L1125AC50/AC5

注;1.表中斜線上方的負載報耗適用于Dyn11聯接組;斜線下方的負載損耗值適用于'Yyn0聯接組.

    2、其它容量的產品性能參數，由用戶與制造廠協商確定.

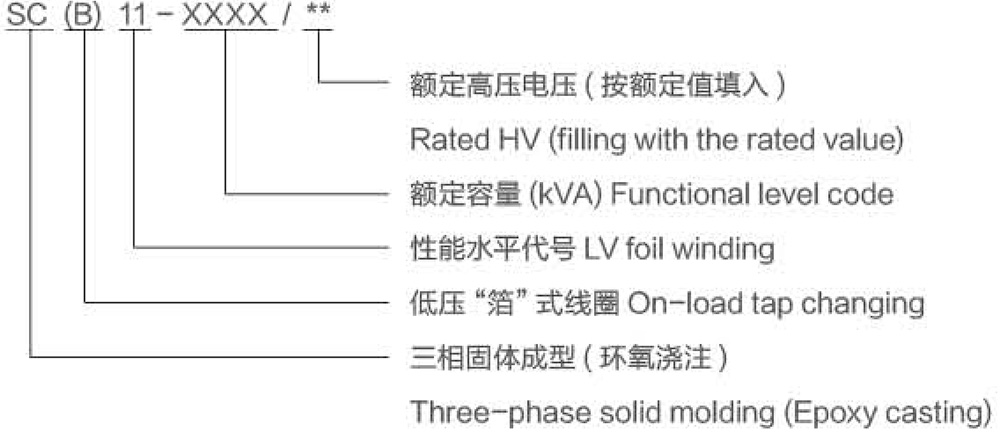

1.Model and meaning

2.Product standards

GB/T 10228-2008 GB1094.11-2007
Rated HV:20(22, 24)kV
The rated low voltage Rated LV: 0.4kV
Tap range Tap connection range:
Non-exciting regulation without excitation voltage regulation (main 5%, 2× 2.5%)
On-load regulation of on-load voltage regulation (4×2.5%)
Combination group Vector group:Dyn11or Y yn0

Insulation level Insulation level :L1125AC50/AC

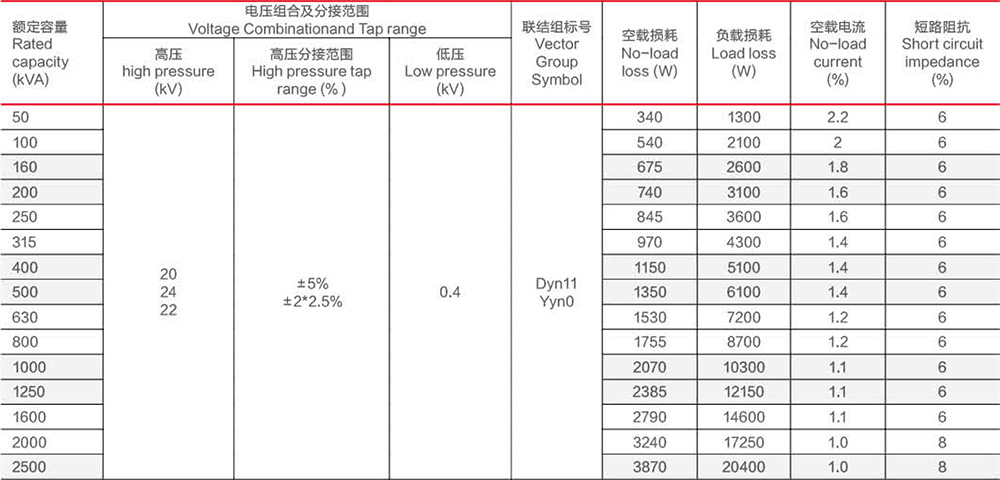

Note: 1, load loss slash table above apply to join the group Dyn11 load loss slash Yyn0 below values apply to join the group.
         2, other capacity product performance parameters, determined by the user in consultation with the manufacturer.
