產品詳情 Product details

檢測器安裝在溜槽側壁上，當溜槽內發生堵塞時，堆積的物料擠壓活動門并使之偏移而啟動行程開關，發出告警或停機信號。排除故障后，活動門在壓簧作用下自動復位。

2.工作原理
1、本檢測器采用測壓活動結構，故障排除后，壓簧的推力使之自動復位。

2、機內選用高性能微動開關，動作靈敏,可靠性高。
3、外形尺寸小，便于安裝。

3.使用與安裝
安裝在不受物料直接沖擊的溜槽垂直側壁上;
產品可分為兩個一組，安裝高度根據用戶需要而定，一般安裝于溜槽底部?jī)?nèi)上三分之一高度為宜;
本產品也可用四個分兩組，一組安裝在溜槽側壁從底算起三分之一相對高度，作為輕度堵塞檢測，用于接振打裝置信號，當溜槽發生堵塞時，振打裝置接受到信號后，并開始振打，另一組安裝底部三分之二處，作為重度堵塞檢測發生堵塞時輸出停機信號

4.主要技術參數

The detector is installed on the side wall of the chute.When a blockage occurs in the chute, the accumulated material squeezesthe movable door and deviates it to start the travel switch, and issues an alarm or a stop signal.After the fault is removed, themovable door is automatically reset by the pressure spring.

2.Working Principle
1.This detector adopts a pressure measuring movable structure. After the fault is removed, the thrust of the compression springautomatically resets it.
2.High-performance micro-switches are selected in the machine , which has sensitive action and high reliabilty.

3.Small size,easy to install.

3.Use & Installation

1.Installed on the vertical side wall of the chute that is not directly impacted by the material;

2.The product can be divided into two groups, and the installation height is determined according to the needs of the user.Generally, it is appropriate to install it in the upper third of the bottom of the chute;
3.This product can also be divided into two groups of four. One group is installed on the side wall of the chute at a relative heightof one-third from the bottom. lt is used as a light blockage detection to receive the signal of the rapping device. After the devicereceives the signal, it starts to beat. The other two thirds of the bottom of the installation are used to output a stop signal whena heavy blockage occurs.

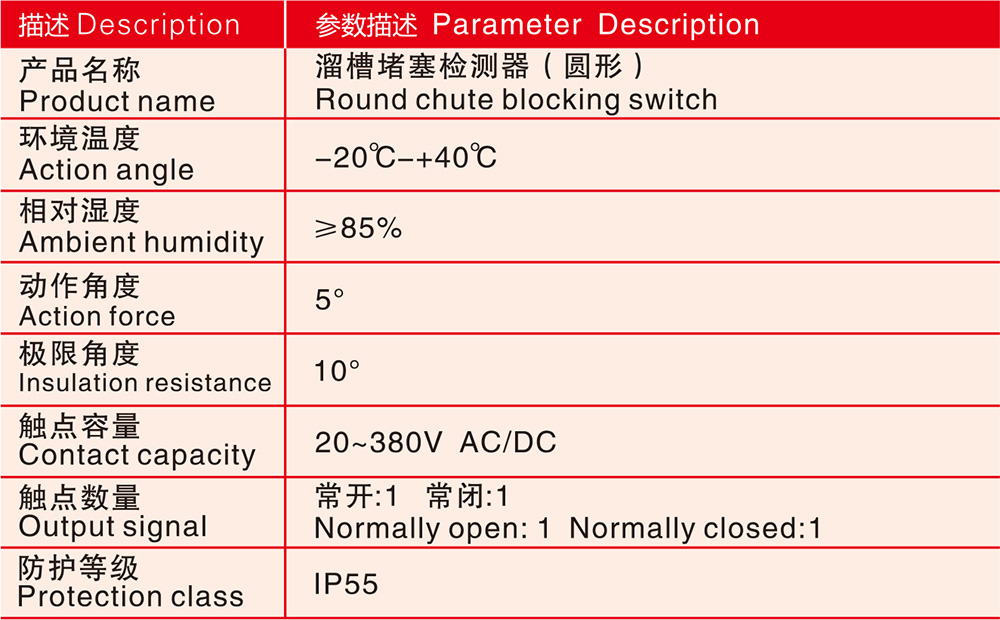

4.Technical Parameters
