產品詳情 Product details

本機用于膠帶運輸機輸送物料的檢測，可發出有載運行信號。如有酒水裝置連接，可實現對物料的自動灑水功能。本裝置也可適用于對向運行的膠帶機。該檢測器具有很好防護措施，適合于各種環境下，特別是沿海，碼頭，電廠，水泥廠，礦山等場合使用的更為可靠地質量良好地的料流檢測器。

2.工作原理
本機采用下垂鏈球與物料接觸的檢測方式，當膠帶運送物料時候，物料推動鏈球并帶動擺臂向一側偏移，若偏移角度大于20°時，內部微動開關啟動輸出一組開關信號。

3.使用與安裝
采用門式支架安裝架，將監測器固定于橫梁上，鏈球高度可以視現場情況確定，本裝置開關轉換角度為20”，對有傾角的膠帶機可遹當調整安裝角度，可選擇掃把式或鐵鏈?zhǔn)健?/span>

4.主要技術參數

This machine is used to detect the material conveyed by the belt conveyor, and it can send the signal of load operation. lf thesprinkler is connected, it can realize automatic sprinkler function on the material.This device can also be applied to a beltconveyor running in the opposite direction.The detector has good protection measures and is suitable for a more reliable andgood quality flow detector used in various environments, especially in coastal areas, docks, power plants, cement plants, minesand other occasions.

2.Working Principle
This machine adopts the detection method of the pendant chain ball contacting the material. When the tape transports the material.the material pushes the chain ball and moves the swing arm to one side. Ifthe offset angle is greater than 20°, the internal microswitch starts to output a set of switching signals.
3.Use & Installation

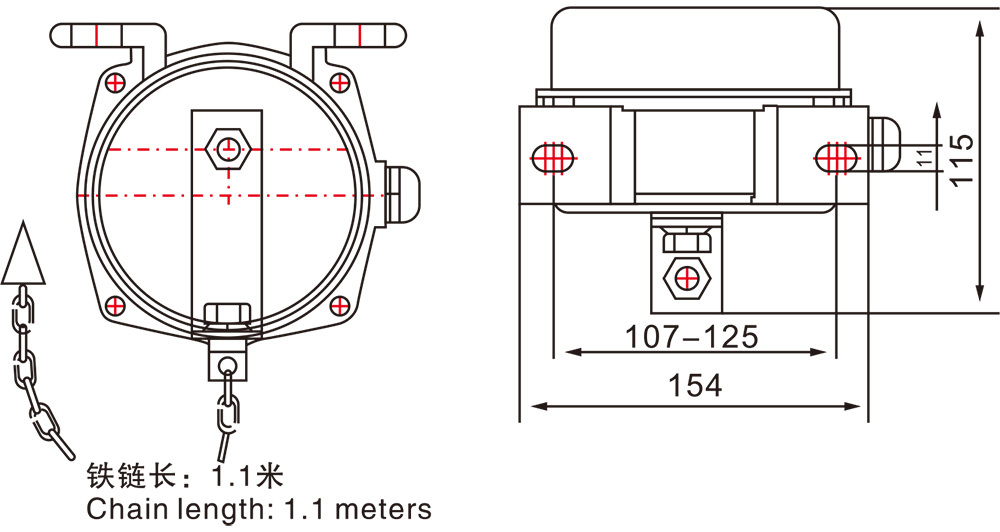

The door-type bracket is used to fix the monitor on the beam.The height of the chain ball can be determined according to the siteconditions.The switch angle of this device is 20° .For inclined tape machines, the installation angle can be adjusted appropriately,and broom type or iron chain type can be selected.

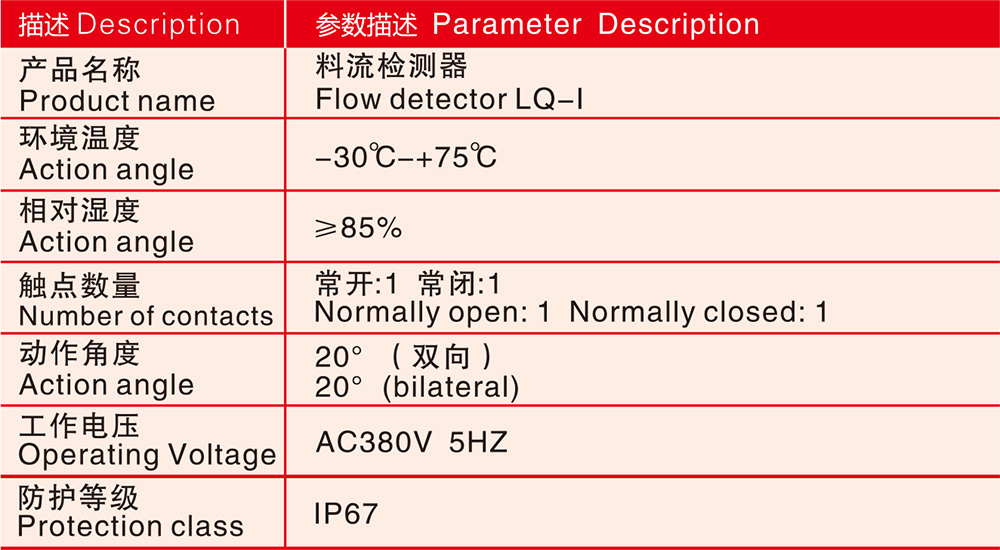

4.Technical Parameters
