產品詳情 Product details

本機用于膠帶運輸機發生事故時緊急停機。

2.工作原理
當膠帶運輸現場發生緊急事故時，可拉動系在拉繩開關吊耳上的鋼絲繩，使機內的滑塊控制內部微動開關動作，發出停機警報信號。自動復位機型在松開鋼絲繩后自動復位，手動復位機型需操作復位手柄后方可復位。

3.使用與安裝
1、開關平衡地按在機架的固定支架上;
2、將鋼絲繩系在兩端的拉環上，每側繩不超過40M（有坡度時應當縮短為25M ) ;

3、拉繩動作力應適宜，以確保開關可靠復位;
4、鋼絲繩沿膠帶平行方向設置,每3M加一個吊環;

4.主要技術參數

This machine is used for emergency shutdown when an accident occurs in the belt conveyor.

2.Working Principle
When an emergency occurs at the tape transportation site, the steel wire rope attached to the lifting ears of the rope switch canbe pulled, so that the slider inside the machine controls the internal micro switch to actuate and issue a shutdown alarm signal.Automatic reset models automatically reset after loosening the wire rope, manual reset models can only be reset after operatingthe reset handle.

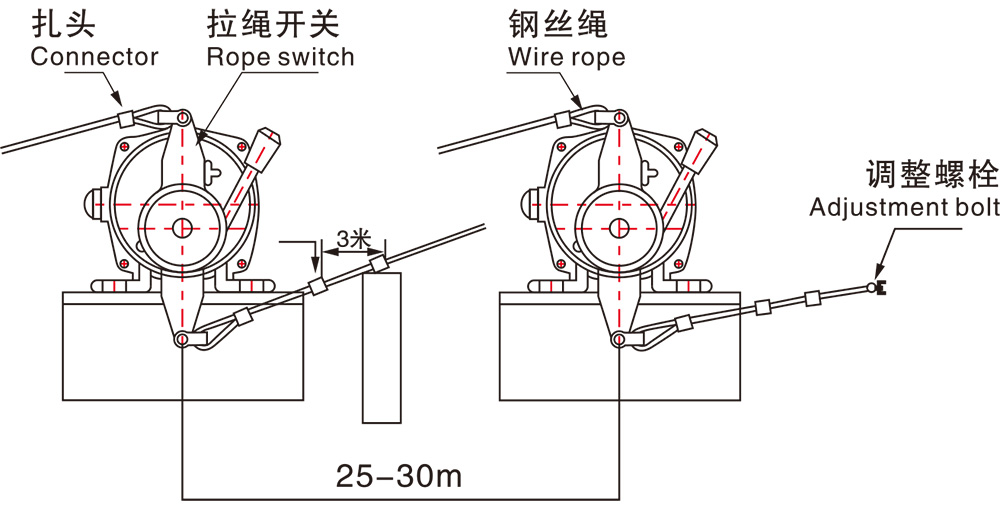

3.Use & lnstallation

2.Tie the steel wire rope to the pullrings at both ends, and the rope on each side should not exceed 40M.(it should be shortened to25M when there is a slope).
3.The pulling force should be appropriate to ensure the reliable reset of the switch.
4.The steel wire rope is set along the parallel direction of the tape,and a lifting ring is added every 3M.

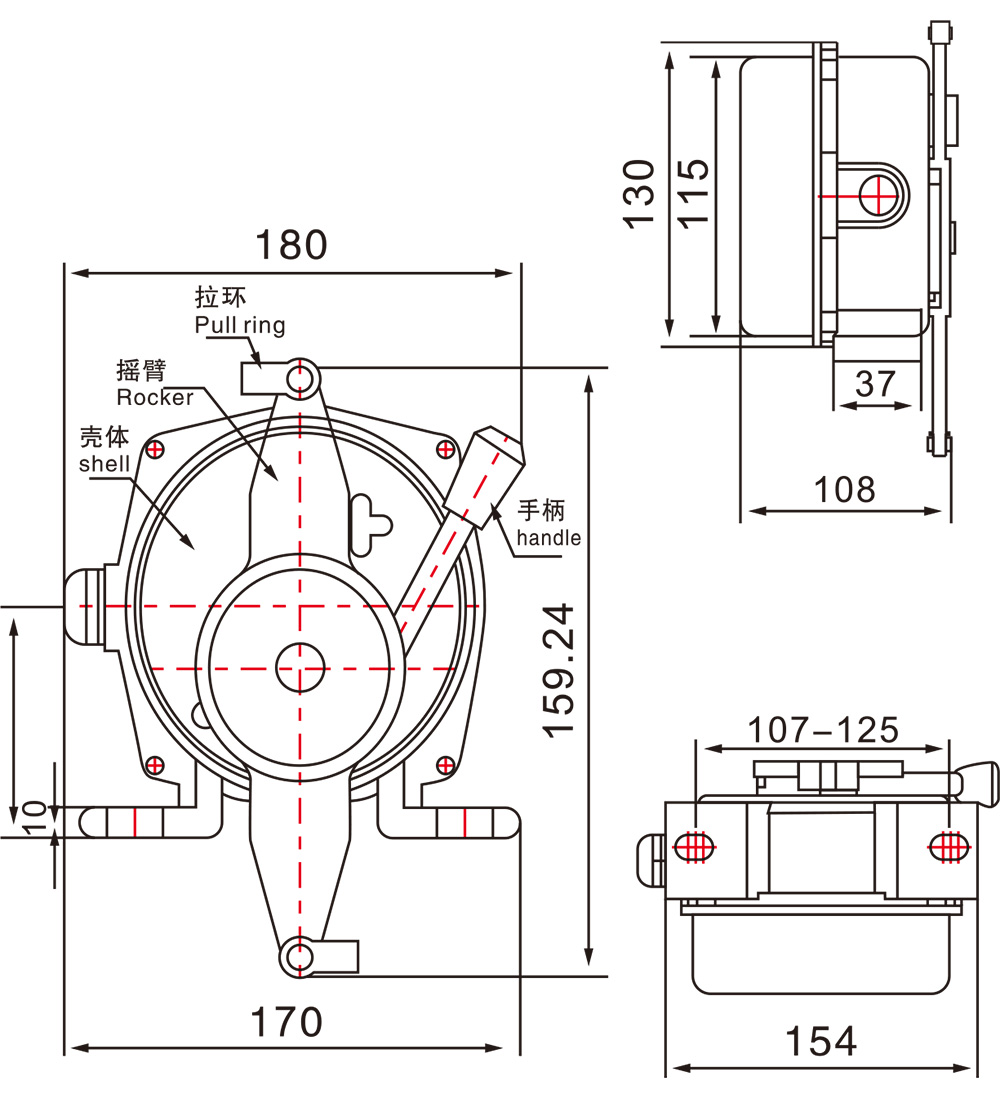

4.Technical Parameters
