產品詳情 Product details

用于輸送機膠帶跑偏的檢測，防止由于膠帶跑偏而造成物料溢出等故障。本機廣泛應用于礦山、電力及化工等行業的運輸系統中.

2.工作原理
當運行中的膠帶發生跑偏現象時，膠帶邊緣帶動立棍旋轉并擠壓使之傾斜，若立棍傾斜角度大于一級動作角度時，開關發出一組開關信號，如立棍繼續傾斜大于二級動作角度時則輸出另一組開關信號。兩組開關信號可分別用于告警或停機，膠帶機復位正常運行后，立棍自動復位。

3.使用與安裝
1.將跑偏開關固定在支架上,然后焊接在膠帶機架上;
2、立棍軸線與膠帶平面相垂直,立棍與膠帶邊緣距離為L=50100mm膠帶位于立棍下端1/3處;
3、每50M膠帶可安裝跑偏開關一對;

4.主要技術參數

1.Features

lt is used to detect the deviation of the conveyor belt and prevent material overflow and other faults caused by the deviation ofthe belt. This machine is widely used in transportation systems of mining, electric power and chemical industries.

2.Working Principle

When the running tape has a deviation phenomenon, the edge of the tape drives the vertical stick to rotate and squeeze to tilt tlf the vertical sticktlt angle is greater than the first-level action angle , the switch sends a group of switching signals, such as thevertical stick continues to tilit more than When the operating angle is at the same level, another set of switching signals is output.The two sets of switch signals can be used for alarm or shutdown respectively. After the belt conveyor is reset and running, thevertical stick is automatically reset.

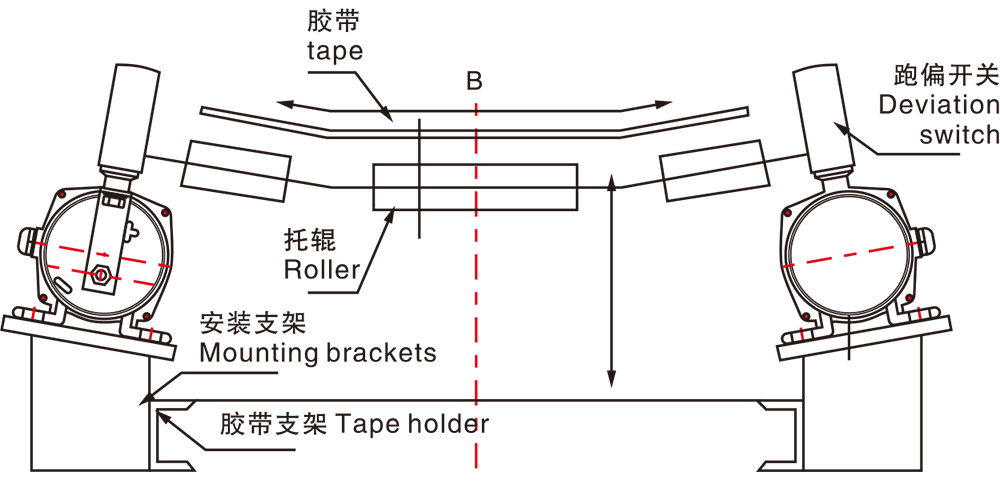

3.Use & Installation
1. FIx the devlation switch on the bracket, and then weld it to the tape frame; .
2. The axis of the vertical stick is perpendicular to the plane of the tape, and the distance between the vertical stick and the edgeof the tape is L=50-1 00mm;
3. The tape is located at 1/3 of the lower end of the stick;

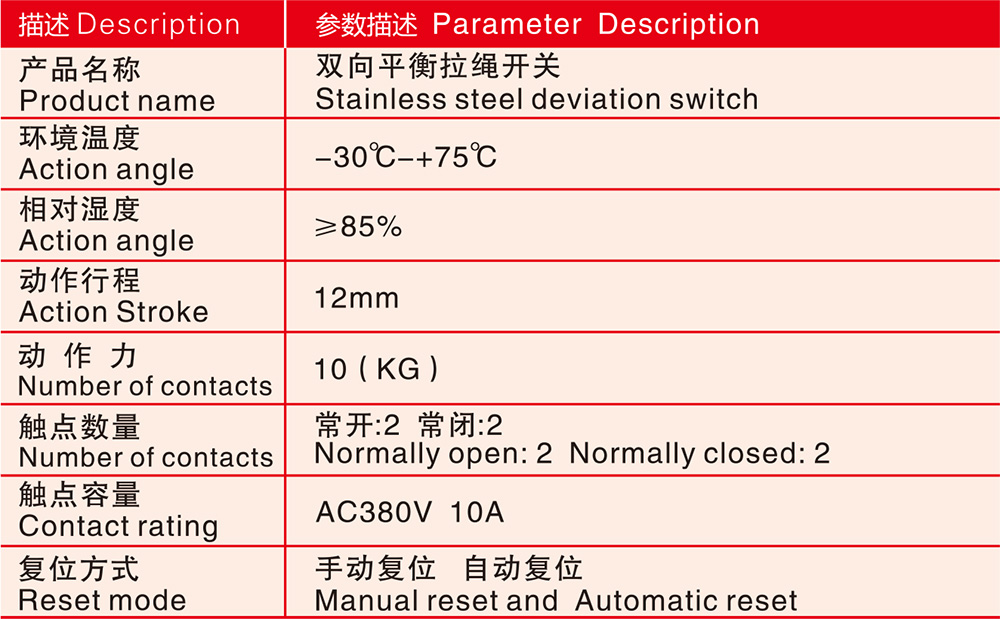

4.Technical Parameters
