產品詳情 Product details

雙向拉繩開關廣泛應用于鋼鐵、水泥、電廠、礦山等具有帶式輸送機的廠礦﹔該產品安裝在股帶輸送機兩側，是用于媵帶輸送機緊急事故停機的一種保護開關，在開關操作距離內任何一點拉動鋼絲繩，切斷運行電路使全線停機，實現對膠帶機及人身安全的保護。

2.工作原理
當膠帶運輸現場發生緊急事故時，可拉動系在拉繩開關吊耳上的銅絲縮，使機內的滑塊與開關作用，發出停機信號。松開鋼絲繩后自動復位。

3.使用與安裝
1、開關平衡地按在機架的固定支架上;
2、將鋼絲○系在兩端的拉環上,每側繩不超過40M目有被度時應當縮短為25M} ;
3、拉繩動作力應適宜，以確保開關可靠復位;
4、鋼絲繩沿膠帶平行方向設置,每3NM加一個吊環;

4.主要技術參數

The two-way pull rope switch is widely used in steel, cement, power plants, mines and other factories with belt conveyors.Thisproduct is installed on both sldes of the belt conveyor.Pull the wire rope at any point within the operating distance, cut off therunning circuit to stop the whole line, and realize the protection of the belt conveyor and personal satety.

2.Working Principle
When an emergency occurs at the tape transportation site , the steel wire rope attached to the liting ears of the rope switch canbe puled to make the allder and switch in the machine act and issue a shutdown signal. Automatically reset after loosening thewire rope.

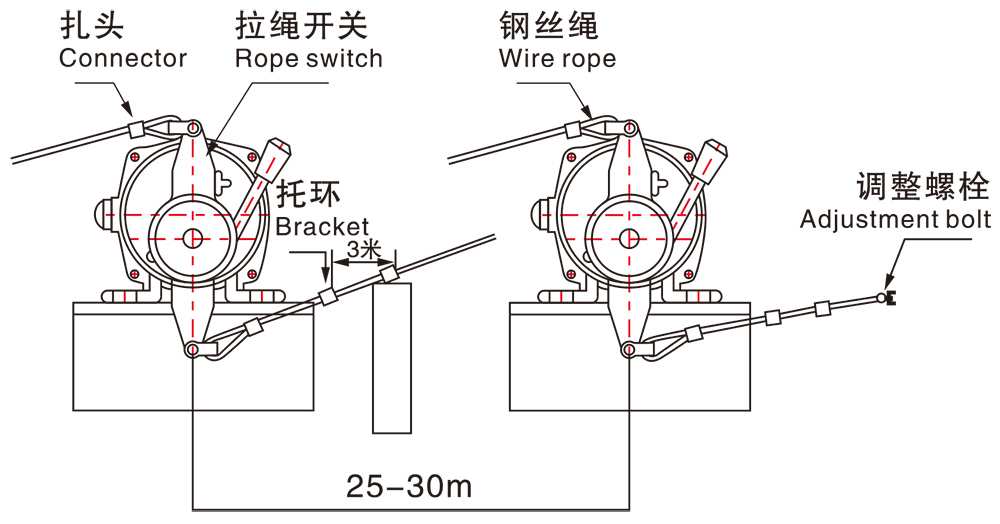

3.Use & Installation
1.Press the switch in a balanced manneron the fixed bracket of the rack.
2.Tie the steel wire rope to the pullrings at both ends, and the rope on each side should not exceed 40M (it should be shortenedto 25M when there is a slope).
3.The pulling force should be appropriale to ensure the reliable reset of the switch.
4.The steel wire rope is set along the parallel direction of the tape,and a lifting ring is added every 3M.

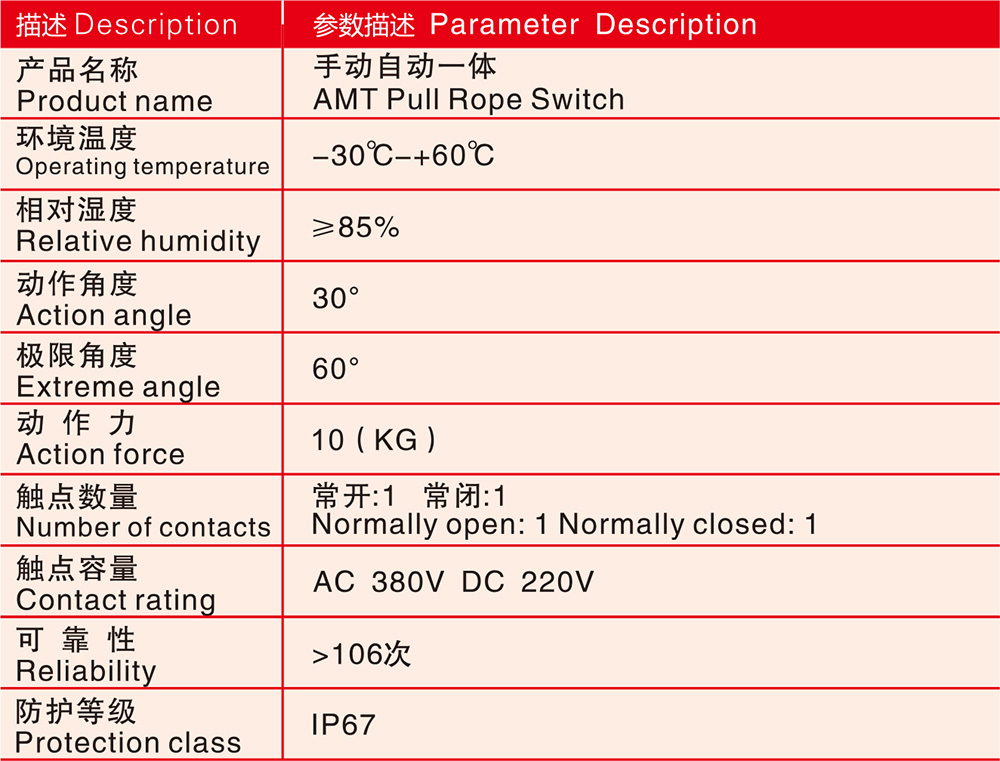

4.Technical Parameters
